What is this symbol?

7 years 1 month ago #24087 by Rage10

What is this symbol? was created by Rage10

Hey all, I need help identifying a symbol on a wiring diagram. I attached a pic.
Thanks in advance!

Please Log in or Create an account to join the conversation.

7 years 1 month ago #24088 by stocktoy

Replied by stocktoy on topic What is this symbol?

I don't see an attachment

Please Log in or Create an account to join the conversation.

7 years 1 month ago #24093 by Rage10

Replied by Rage10 on topic What is this symbol?

whoops,forgot to insert it. I think it's a single wire conection symbol.

Please Log in or Create an account to join the conversation.

7 years 1 month ago #24094 by scotch

Replied by scotch on topic What is this symbol?

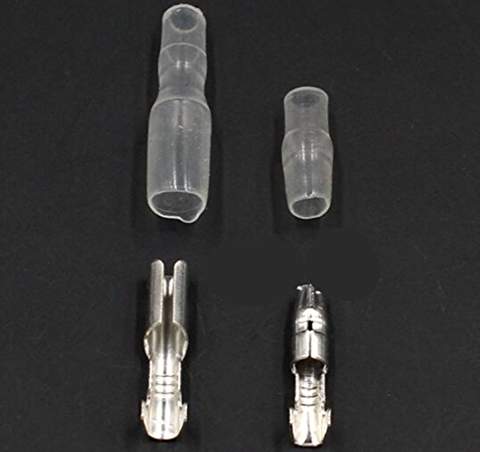

My '80 wiring schematic uses a similar symbol for Bullet connectors.

1980 KZ 1300 sr# KZT30A-009997
Always High - Know Fear !

Please Log in or Create an account to join the conversation.

7 years 1 month ago #24095 by Rage10

Replied by Rage10 on topic What is this symbol?

That's what I was thinking. Thanks!

Please Log in or Create an account to join the conversation.

7 years 1 month ago #24096 by mizztheman

Replied by mizztheman on topic What is this symbol?

I thought it was to show the diodes and the direction the current is flowing.
